UMD - Model 317 [Discontinued] Model 320 - Current Model
USB Cash Drawer Trigger Module - Interface Converter


The UMD Model 317 has been discontinued. It is recommended to upgrade to the M320 which includes more features, performs faster and is cheaper compared to the M317. The M320 also has more connectivity options; USB, Wi-Fi and Ethernet, allowing for greater installation flexibility. Visit the webpage here.

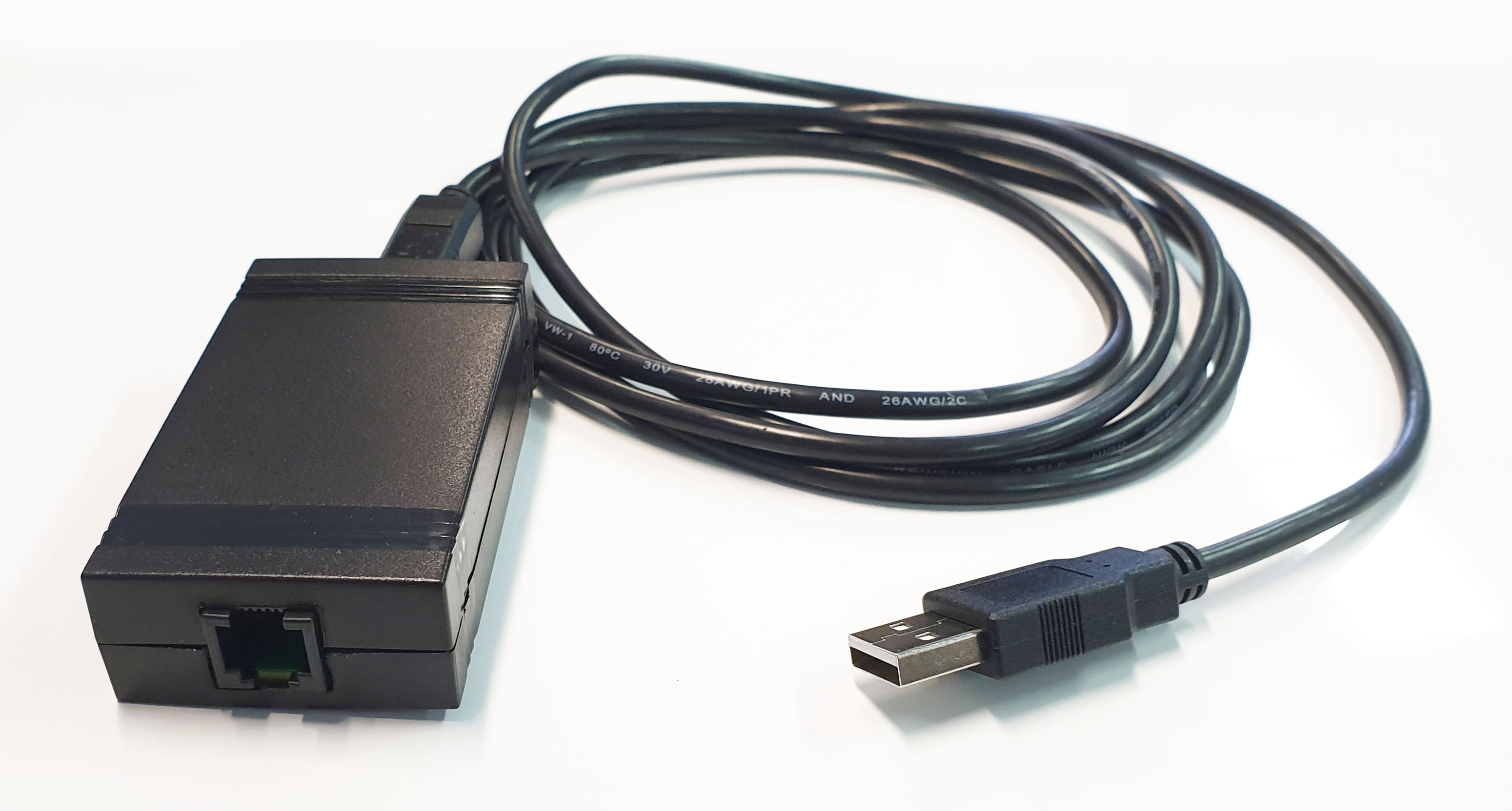

The UMD Model 317 External Trigger Module is designed to provide USB interfacing to the UMD range of "base" or "solenoid" based cash drawers. This allows cash drawers, previously attached to POS printers and cash registers, to be connected to a USB port.

The M317 USB Trigger Module uses a Virtual Serial Port Driver, making it appear to software like a standard RS232 Serial Port. This way existing POS Software can communicate with the USB Cash Drawer Trigger as though connected to a Serial Port. A unique serial number is assigned to each USB Trigger Module and and the Driver Software will assign the next available Serial Port to each device it recognises (multiple Triggers can be used on one PC).

The interface module is designed to accept modular cash drawer connectors and is USB Bus powered.

All standard POS printer drawer open commands are used to trigger the device and the ESC/POS status command is also available to read the drawers open or closed condition.

The Model 317 USB Cash Drawer Trigger Module has been tested and approved for use with: SagePOS; MYOB's Retail Manager; and Quicken's QuickPOS.

Features

  • USB Cash Drawer Interface
  • USB Bus Powered
  • OPOS Compliant
  • Operates with Windows '98 and later
  • Accepts All Standard POS Drawer-open Commands
  • 12 Months Warranty

Specifications

Physical Characteristics
Dimensions80 (h) x 40 (w) x 25 (h) mm
Weight65 grams (including cable)
ColorBlack
Interfaces
ComputerUSB V1.1 & USB HID Class V1.0
Cash DrawerRJ12 6 Pin Modular
Electrical
Power Requirements100mA (max)
Suspend Mode500uA
Output DriveMax. 24V @ 1A (10-36 ohm)
Repeat Rate5 - 7 sec.
Indicator
DischargeGreen LED


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Model 317 USB Trigger Module
Stock Line
M317B201 M317b Cash Drawer Trigger Module with USB Interface, Black - Separate Cable $143.00 U
Indent
M317B200 M317 UMD Cash Drawer Trigger Module with USB Interface - Separate Cable $132.00 U
Model 317 Virtual Com Port Driver
[B] Replacement Cable
2-6310-020-2 CA6310-2 USB Cable A/B, Black - 2m $0.00 C
